Chapter 8: Tools & Accessories
Complete accessories checklist, installation tools, testing equipment, and consumables required for surveillance structured cabling projects.
8.1 Accessories Checklist
A complete accessories kit is essential for efficient installation and long-term system maintainability. The checklist below covers all consumable and reusable accessories required for a typical surveillance cabling project. Quantities should be calculated based on project scale, with a 10–15% overage for consumables to account for waste, re-work, and future additions. The image below provides a visual reference for all standard accessories.

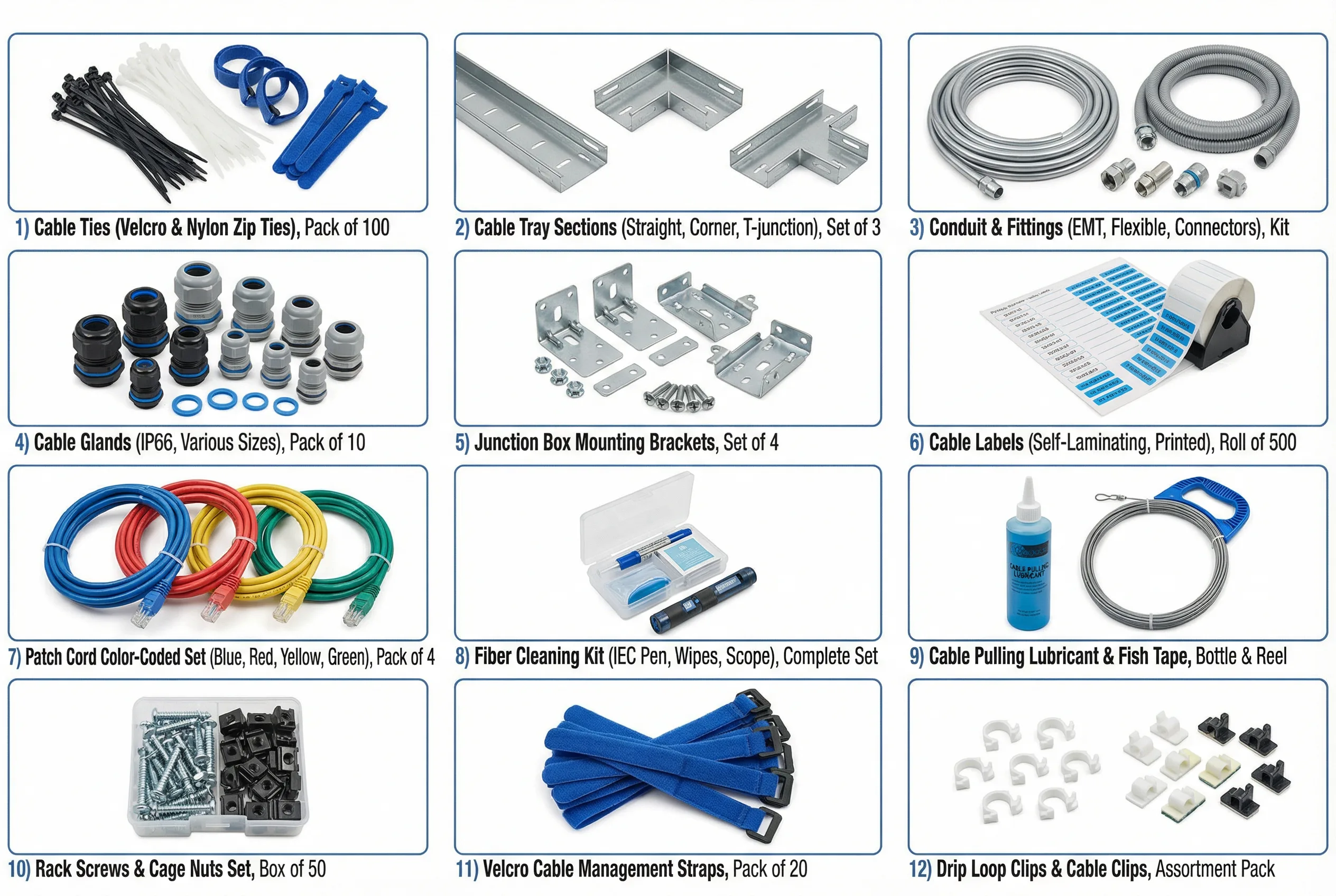

Figure 8.1: Complete Accessories Checklist — All Standard Installation Accessories for IP Surveillance Structured Cabling Projects
| # | Accessory | Specification | Qty Basis | Notes |
|---|---|---|---|---|
| 1 | Cable Ties (Nylon Zip Ties) | 200 mm × 4.8 mm, UV-resistant | 10 per camera run | For securing cable to tray/conduit |
| 2 | Velcro Cable Straps | 200 mm × 20 mm, reusable | 5 per cabinet | For patch cord management only |
| 3 | Cable Tray Sections | Straight, corner, T-junction; 50–150 mm wide | Per pathway length | Galvanized steel or PVC |
| 4 | Conduit (EMT) | 20–32 mm diameter, with fittings | Per exposed run length | For exposed or outdoor runs |
| 5 | Flexible Conduit | 20 mm, with connectors | 0.5 m per camera | For final drop to camera |
| 6 | Cable Glands (IP66) | PG11, PG13.5, PG16 sizes | 2 per outdoor junction box | Watertight cable entry |
| 7 | Junction Box Mounting Brackets | Stainless steel, adjustable | 1 per outdoor camera | For wall/ceiling mounting |
| 8 | Cable Labels (Self-Laminating) | Printable, 25 mm × 50 mm | 3 per cable (both ends + midpoint) | Use label printer for consistency |
| 9 | Patch Cord Color-Coded Set | Cat6A, 0.5–3 m, 4 colors | 1.2× switch port count | Blue=camera, Red=uplink, Yellow=mgmt |
| 10 | Fiber Cleaning Kit | IEC pen cleaner, lint-free wipes, inspection scope | 1 kit per project | Clean all fiber connectors before mating |
| 11 | Cable Pulling Lubricant | Water-based, compatible with PVC/PE | 1 bottle per 500 m of conduit | Reduces friction for long pulls |
| 12 | Fish Tape / Cable Puller | 30 m steel or fiberglass | 1 per installation team | For pulling cable through conduit |
| 13 | Rack Screws and Cage Nuts | M6 × 16 mm, with washers | 4 per rack unit of equipment | For securing equipment to rack |
| 14 | Drip Loop Clips | Plastic, 20 mm diameter | 1 per outdoor cable entry | Prevents water ingress along cable |
| 15 | Cable Clips (Adhesive) | Self-adhesive, 6–10 mm | 10 per camera run (surface mount) | For surface-mounted cable runs |
8.2 Installation and Testing Tools
Professional installation and testing tools are required to achieve certified channel performance and to document the system for warranty and acceptance purposes. The table below lists all required tools, categorized by function. Rental of high-cost test equipment is acceptable for single projects; however, teams performing multiple projects per year should invest in ownership to ensure availability and calibration currency.
| Tool Category | Tool | Specification | Purpose |
|---|---|---|---|
| Cable Termination | Punch-down tool (110 type) | Impact type, with 110 blade | Terminating Cat6A to patch panel and keystone |
| Cable Termination | RJ45 crimp tool | For Cat6A pass-through or standard connectors | Field-terminating patch cords |
| Cable Termination | Cable stripper (adjustable) | For 4–9 mm OD cables | Stripping Cat6A jacket without damaging pairs |
| Fiber Termination | Fiber cleaver (precision) | ±0.5° cleave angle | Preparing fiber ends for splicing or connectors |
| Fiber Termination | Fusion splicer | Core alignment, <0.02 dB splice loss | Splicing OS2/OM4 fiber backbone |
| Cable Testing | Cat6A channel certifier | Fluke DSX-8000 or equivalent; TIA-568.2-D | Certifying all copper horizontal runs |
| Fiber Testing | OTDR (Optical Time Domain Reflectometer) | 1310/1550 nm; 40+ dB dynamic range | Testing fiber backbone end-to-end |
| Fiber Testing | Optical power meter + source | Calibrated; ±0.2 dB accuracy | Measuring insertion loss at each connector |
| PoE Testing | PoE tester / analyzer | Tests PoE class, voltage, current, power | Verifying PoE delivery to each camera port |
| General | Network cable tester (basic) | Wire map, continuity, length | Quick pre-certification check |
| General | Tone generator and probe | Audible tone; works through conduit | Tracing cables in walls and ceilings |
| General | Label printer (portable) | Prints on heat-shrink and self-lam labels | Labeling all cables, ports, and cabinets |
